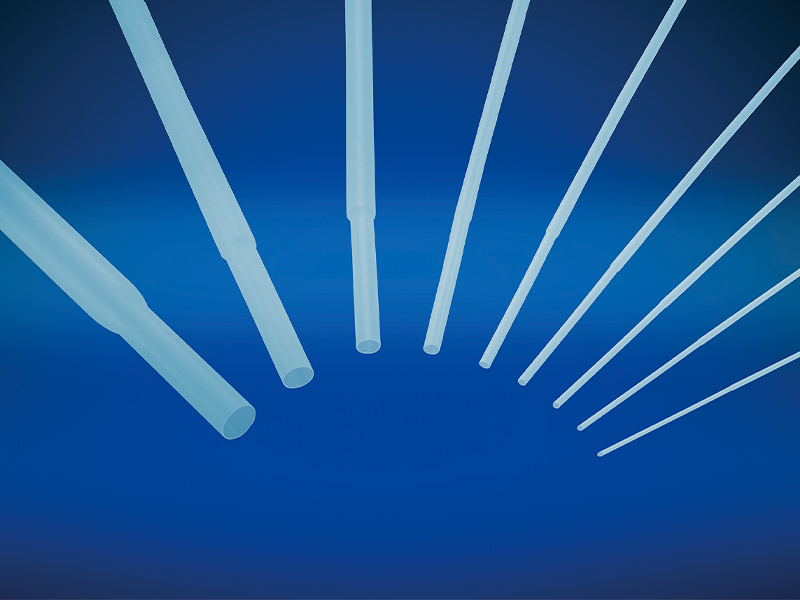

Heat-shrinkable small-diameter Tube (EIT) Anti-Static Type
GF TUBE®
GF Tube is a trademark or registered trademark of Gunze Limited.
- EIT
This small-diameter heat-shrinkable tube can be used in a variety of fields as well as for covering ultra-small rolls.
With its high non-conductivity and heat resistance, it is suitable for adding functionality to electronic components such as connectors, electric wires, and telegraph cables.
GF Tube is a trademark or registered trademark of Gunze Limited.
Product videos
Features
Non-conductive
Heat resistant
Water repellent, non-adhesive
Chemical resistant
Uses
- Heat resistance, insulation
- Connectors
- Terminals and other electrical components
- Electric wires
- Telegraph cables
- Fiber optic cables
- Power cables
- Temperature sensors
- Roll covers

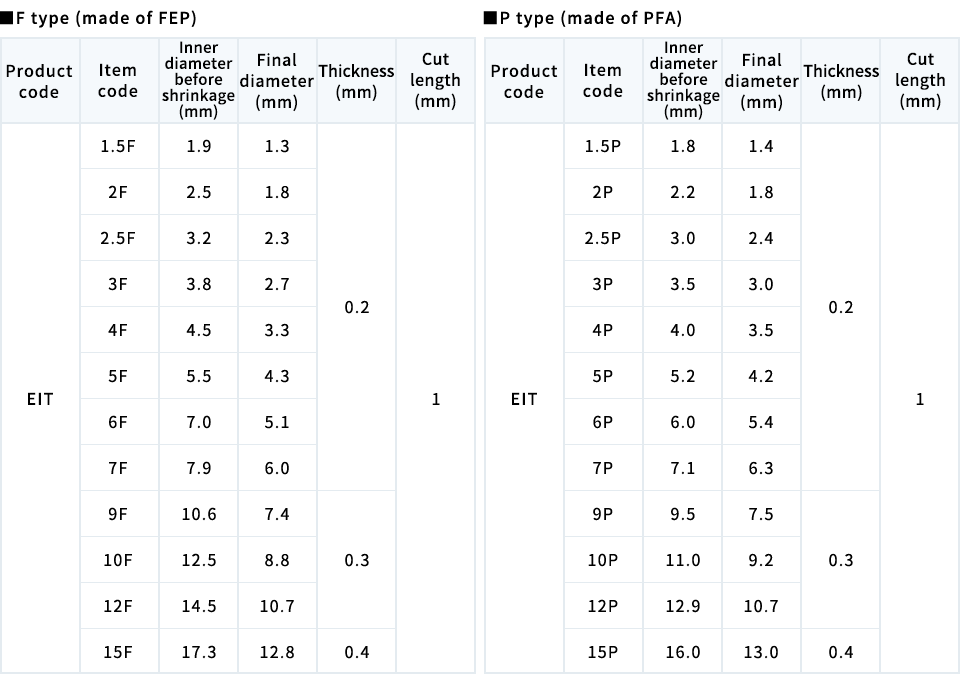

Standard specifications
You can choose from a selection of standard specifications. For standard products, the MOQ (minimum order quantity) is one piece.
Contact our sales office for non-standard products.
Scroll to see more
• Place orders in lots of 10 pieces.
• Contact us for long, thick-walled, or colored products.
• Contact us for conductive types.
• Store in a cool, dark place (30°C or below) to maintain the inner diameter before shrinkage.
• The inner diameter after shrinkage is measured after heating at 200°C for 10 minutes and is not a guaranteed value.
• P type has higher heat resistance than F type.
• Ultrafine tube of small diameters other than the above standard specifications can also be manufactured, so consult with us.
Since EIT stretches slightly in the longitudinal direction when shrinking, it can be installed without wrinkles by pulling the unshrunk side of the tube while processing when covering a long product.
Contact us for the applicable size.
Thick-walled and long products are also available.

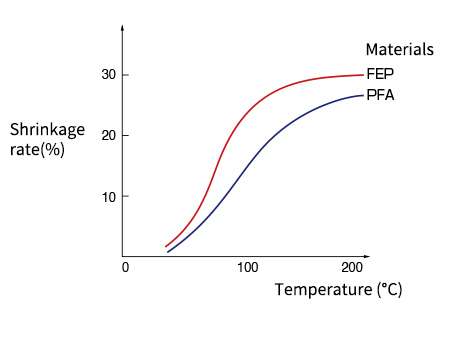

Approximate shrinkage temperatures
Scroll to see more
GF TUBE®
GF Tube is a trademark or registered trademark of Gunze Limited.

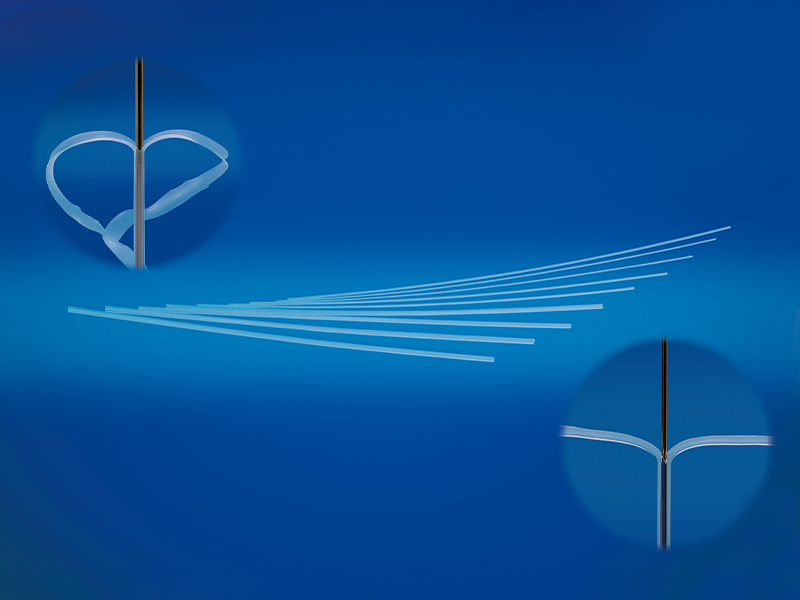

- EIT-S＆EIT-SR
This is Gunze's smallest diameter lineup with excellent heat shrinkage of up to 60% (240°C) and ultrafine diameters.
In addition, to facilitate the peeling process after covering, we offer a new product, EIT-SR, a peelable tube.
GF Tube is a trademark or registered trademark of Gunze Limited.
Product videos
Features
Peelable Non-conductive Heat resistant Water repellent, non-adhesive Chemical resistant
Uses
Jigs for molding small-diameter plastic tubes such as catheters, insulation and chemical resistance of small-diameter sensor terminals like thermistors and lead wires, etc.
Since this product is made-to-order, please contact our sales office.
We will provide the best solution to meet your request.

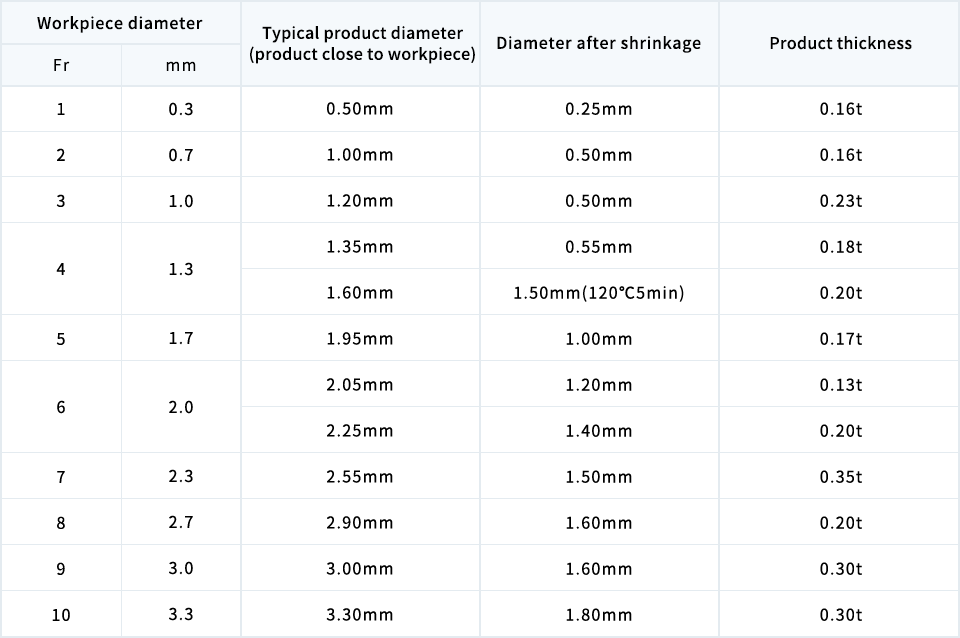

Reference specifications
Scroll to see more

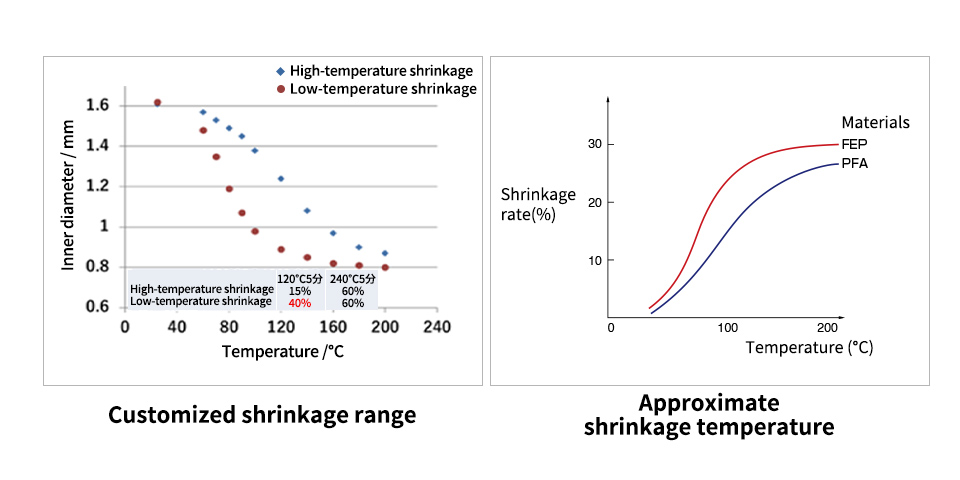

Shrinkage control
High shrinkage
Maximum shrinkage: 50% or more
Shrinkage force can be customized to match your processing temperature.
Scroll to see more

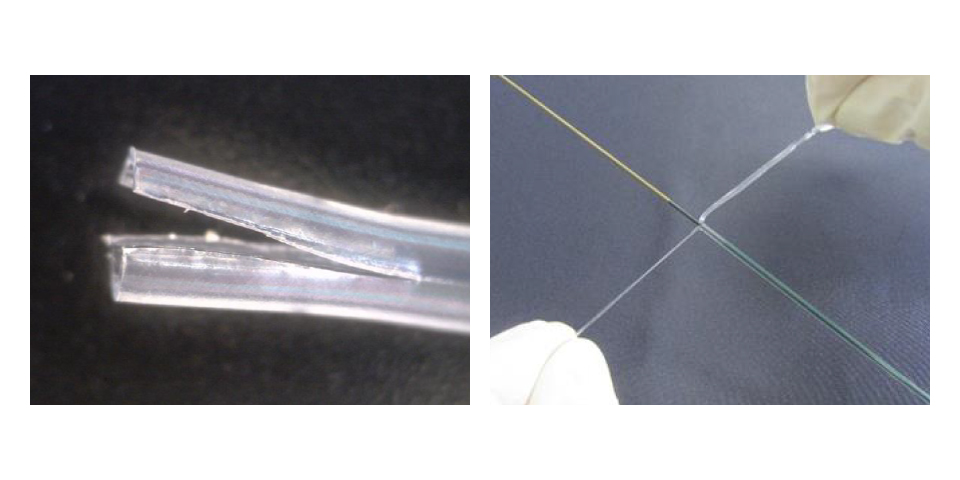

Peelable
We offer a new product, EIT-SR, which is peelable while maintaining shrinkage. During the peeling process, a slit can be made at the edge, which can be used as a starting point for tearing.
Scroll to see more

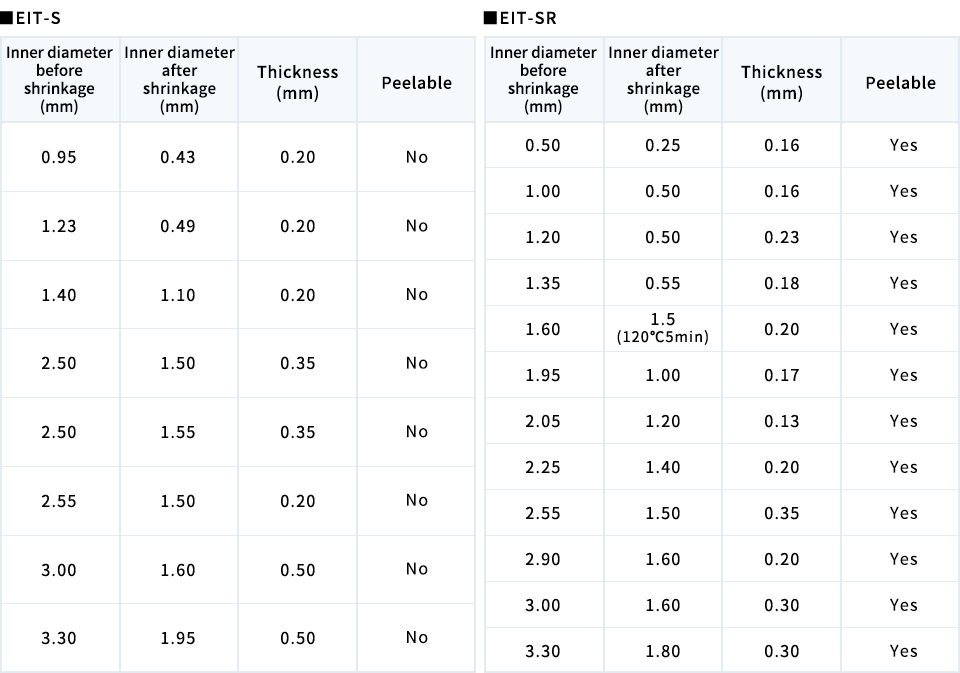

Sizes
Scroll to see more
