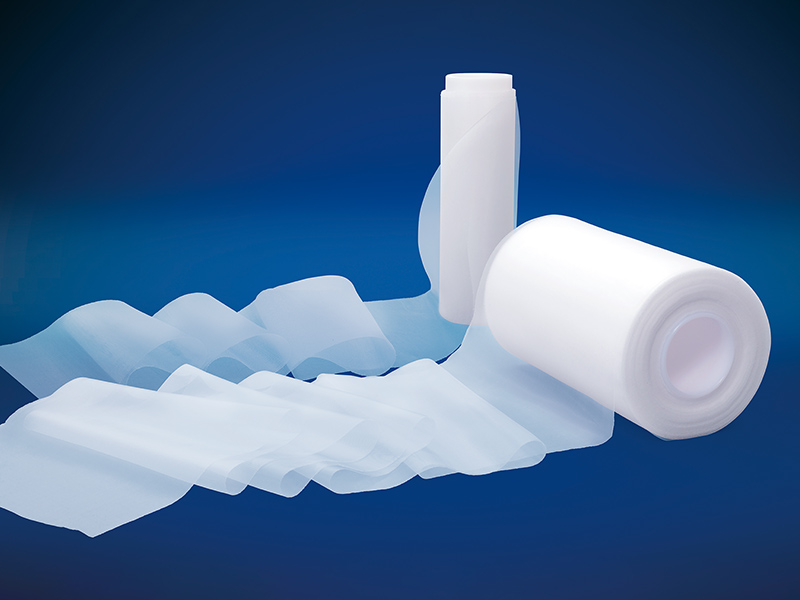

Fiber
GF TUBE®
GF Tube is a trademark or registered trademark of Gunze Limited.
- NET
We’ve combined our resin casting and fiber processing technologies. The mesh is woven using fluoropolymer filaments in the warp and weft.
GF Tube is a trademark or registered trademark of Gunze Limited.
Features
Highly pure
Chemical resistant
Heat resistant
Uses
- Various filter applications

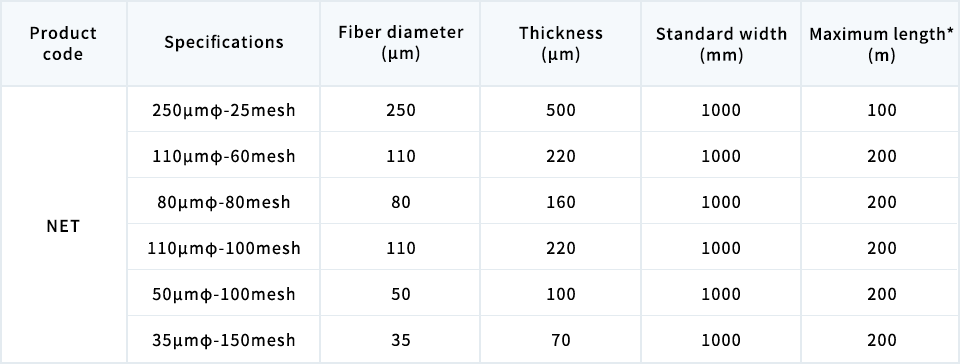

Standard specifications
You can choose from a selection of standard specifications.
Contact our sales office for non-standard products.
Scroll to see more
• Contact us for fiber diameters and mesh numbers other than the standard.
• Contact us for width and length.
• Contact us about the type of woven fabric.
• When ordering, please specify a minimum winding length of 10m and a 10m pitch.

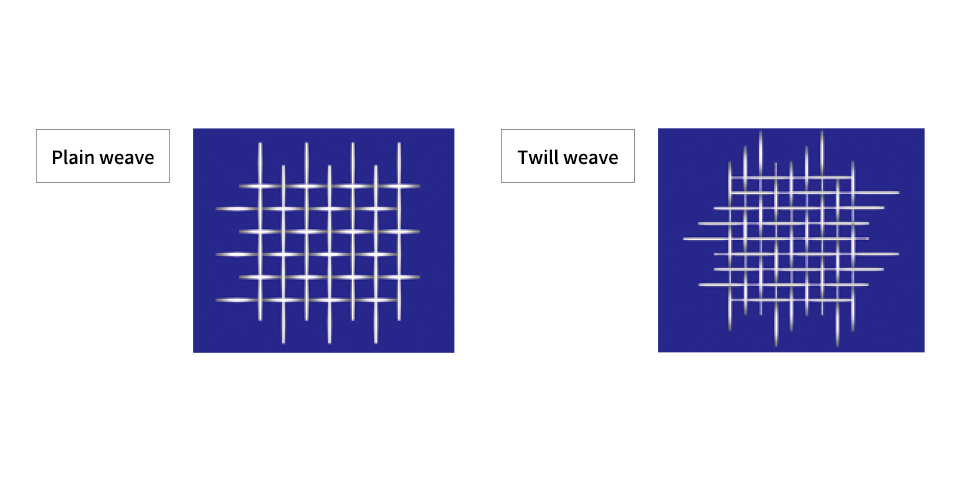

• Plain weave, twill weave, double weave, and tube weave can also be produced.
*The maximum length is a rough estimate.

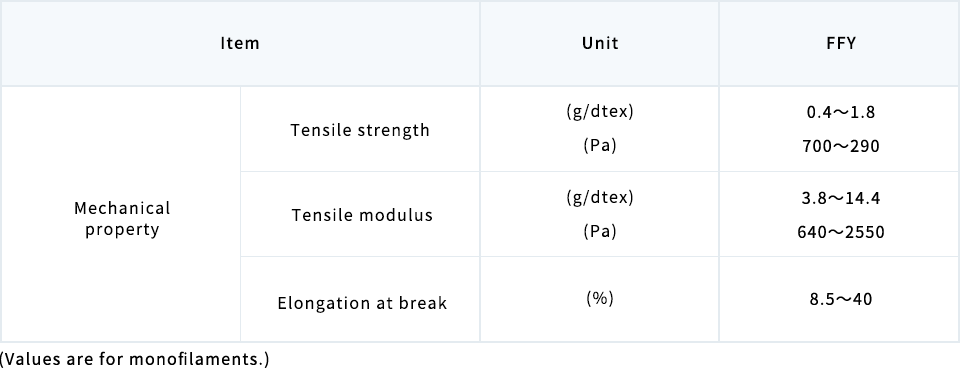

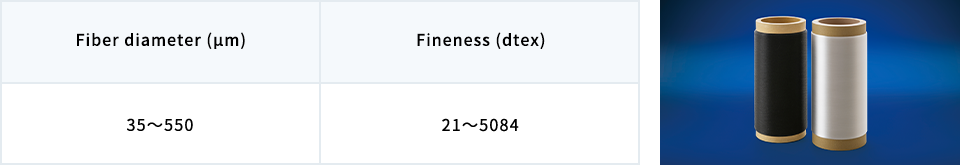

Fluoropolymer filament
NET uses fluoropolymer filaments manufactured using a proprietary process.
Gunze’s long fibers are made of PFA resin, which boasts excellent heat resistance, and are produced using spinning technology.
Scroll to see more
Scroll to see more
Examples of fiber structure
Scroll to see more
