Products
HEPTAX
(Multi-layered Nylon Film)
Product lineup
- “HEPTAX”, the complex nylon film of Gunze is a coined word of Greek “7 (HEPTA)” and “X” from COMPLEX.
- Sequential bio-oriented film, which can layer up to 5 types 7 layers.
02
Hybrid nylon
- In order to reduce the amount of packaging material and the laminating process, unique multi-layer oriented technology of Gunze has realized a hybrid of nylon.
(Hybrid Biaxial Oriented Nylon=Bio-oriented nylon with the layer of PET)
Advantage (layer composition)
Application
For the conventional product (left diagram), PET and ONY are laminated together, but the type HBN (right diagram) is possible to substitute the function of two layers with one sheet.
With this technology, cost reduction can be expected by reducing the amount of packaging material usage and laminating process.
Ready-to-eat meal
For lids of jelly, etc
Frozen ready-to-eat food for commercial use
In addition, it is also used as a solution proposal to solve ONY problems.
HEPTAX (Hybrid nylon)
| Type | Thickness (μm) |
Corona treatment |
Length (m) | Composition of layers | Features・Applications | ||
|---|---|---|---|---|---|---|---|
| 2000 | 4000 | ||||||
HBN |
15 |
Inside |
〇 |
〇 |
PET/NY |
Hybrid nylon that has advantages of PET and nylon |
Replacement of PET/NY |
25 |
|||||||
HBF |
15 |
― |
Replacement of ONY |
||||
- Please confirm size to sales person in charge
Heat-resistant temperature
| Type | Boiled (Opened) | Semi-cooked | Retort | ||
|---|---|---|---|---|---|
85℃×30 minutes |
100℃×60 minutes |
105℃×30 minutes |
115℃×30 minutes |
125℃×30 minutes |
|
| HBN | 〇 |
〇 |
〇 |
〇 |
〇 |
| HBF | 〇 |
〇 |
〇 |
― |
― |
- Attention: These are the evaluations of single film. Please contact person in charge before use.
03
Barrier nylon
Great multi-layer technology of Gunze enables to add several functions to single piece of film.
Advantage (layer composition, application)
| Type | HF | HP |
|---|---|---|
| Usage | General type |
High barrier type |
| Layer composition | NY/NY/EVOH/NY/NY |
NY/EVOH/NY |
| Application |
|
|
| Type | VF | BWC |
|---|---|---|
| Usage | Heat-resistant type (Boilable) |
・Ham, sausages ・Pouch type |
| Layer composition | NY/NY/MXDNY/NY/NY |
NY/NY/EVOH/NY/NY |
| Application |
|
|
HEPTAX (Barrier nylon)
| Type | Thickness (μm) |
Corona treatment |
Length (m) | Layer composition | Features・Applications | |
|---|---|---|---|---|---|---|
| 2000 | 4000 | |||||
HF |
15 |
Inside |
〇 |
〇 |
NY/NY/EVOH/NY/NY |
Resistant to pinholes For cheese, rice cakes, BiB (Bag in Box), liquid soup |
HF2 |
Both sides |
|||||
BWC |
Inside |
Economy type For sausages, semi-baked sweets,delicacies |
||||
HP |
17 |
Inside |
NY/EVOH/NY |
High barrier For miso, medicines, bath additives, heavy duty bag |
||
25 |
||||||
HP2 |
17 |
Both sides |
||||
25 |
||||||
VF |
15 |
Inside |
NY/NY/MXDNY/NY/NY |
Resistant to pinholes Semi-retort(115℃) *Careful assessment required for over 100℃ For semi-baked sweets, pickels, cooked dith, lids |
||
VF2 |
Both sides |
|||||
- Please confirm size to sales person in charge
Heat-resistant temperature
| Type | Boiled (Opened) | Semi-retort | Retort | ||
|---|---|---|---|---|---|
85℃×30 minutes |
100℃×60 minutes |
105℃×30 minutes |
115℃×30 minutes |
125℃×30 minutes |
|
| BWC | ― |
― |
― |
― |
― |
| HF・HP | 〇 |
― |
― |
― |
― |
| VF | 〇 |
〇 |
〇 |
〇 |
― |
- Attention: These are the evaluations of single film. Please contact person in charge before use.
04
Multi-layered nylon
Great multi-layer technology of Gunze enables to add several functions to single piece of film, laminate and orient PE that other companies don’t have.
Advantage (layer composition, application)
| Required characteristics | Application (Contents) | Type | Advantage |
|---|---|---|---|

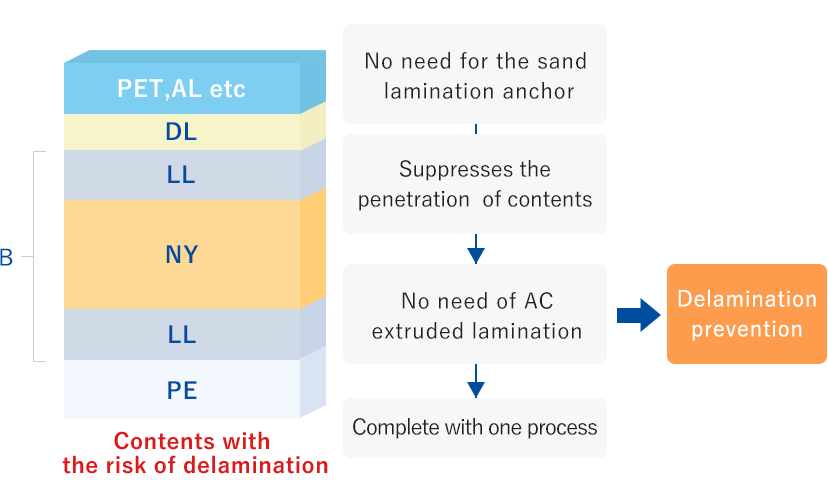

| Delamination prevention reinforcement pressure resistance |
|
Type B |
Non-anchor lamination is possible, and can prevent from delamination.  It is strong to bag-breaking since it is bio-oriented. |
| Heat sealing + strength |
|
||
| Heat sealing + gas barrier property |
|
Type OH |
Able to thin the film compared to laminated product. |
HEPTAX (Multi-layered nylon)
| Type | Thickness (μm) |
Corona treatment |
Length (m) | Composition of layers | Features・Applications | |
|---|---|---|---|---|---|---|
| 2000 | 4000 | |||||
B |
30 |
Inside |
〇 |
〇 |
LL/NY/LL |
No AC required, pressure resistant, For reinforcement materials |
40 |
― |
|||||
OH |
20 |
Inside (NY side) |
3000 |
NY/EVOH/NY/LL |
For balloons |
|
25 |
||||||
- Please confirm size to sales person in charge
General nylon
HEPTAX (General nylon)
| Type | Thickness (μm) |
Corona treatment |
Length (m) | Composition of layers | Features・Applications | |
|---|---|---|---|---|---|---|
| 2000 | 4000 | |||||
GN |
15 |
inside |
― |
〇 |
NY/NY/NY |
Non-barrier general type. Can be used for all foods. |
Heat-resistant temperature
| Type | Boiled (Opened) | Semi-retort | |
|---|---|---|---|
85℃×30 minutes |
100℃×60 minutes |
105℃×30 minutes |
|
| GN | 〇 |
〇 |
― |
- Attention: These are the evaluations of single film. Please contact person in charge before use.
HEPTAX product list
HEPTAX product list can
be downloaded from here.
